228-1ST20-0AA0

Specifications:

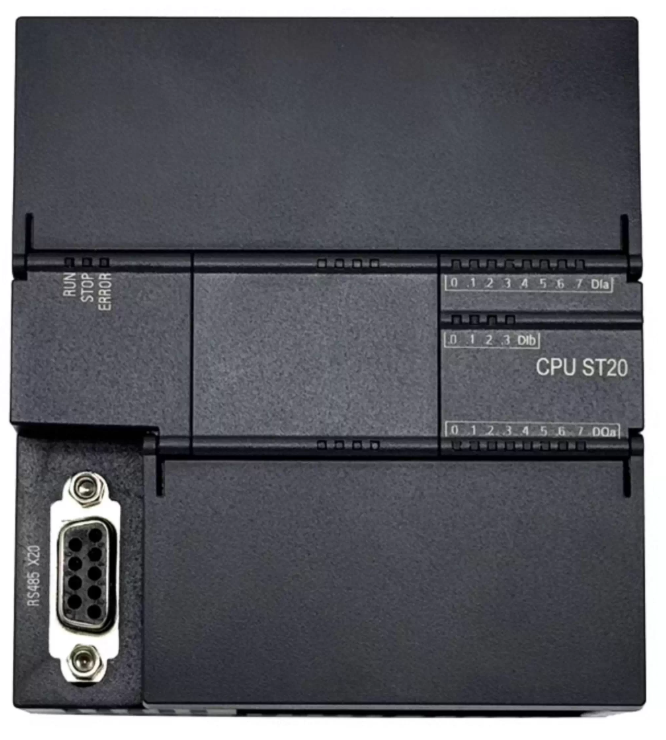

• Model: CPUST20

• Order Number(MLFB): C7 228-1ST20-0AA0

• Power Supply: 24VDC

• Digital Input: 12 Digital Input Channels of Opto-isolated I/O Ports, Sink or Source ( NPN or PNP), Supports 6-channel high-speed pulse counting, with a maximum frequency of 200 kHz;

• Digital Output: 8 Transistor Output Channels of Opto-isolated I/O Ports, Supports 2-channel high-speed pulse output, with a maximum frequency of 100 kHz

• Analong Input: None

• Analog Output: None

• Ethernet: Supports PROFINET Bus Master/Slave Mode, Supports 32 TCP Connections, Supports S7 TCP, GET/PUT, OUC, Modbus TCP,UDP, ISO TCP, 8 Profinet Slaves C7 IM155 Each with 16 Expansion Modules Total 128 Modules Expandable

• Extend Module: Supports Up to 20 Expansion Modules

• RS485: supports PPI protocol, free-port protocol, MODBUS RTU

• Online Program Editing Supported

Based on high quality, we ensure product reliability and stability through strict quality control. The product undergoes rigorous testing and certification to guarantee the expected performance in the hands of users.

Dimensions: 90mm*100mm*81mm

Wiring:
